cinclude2dot
This project has been taken over by francis@flourish.org with my full blessing. Current versions can be found here.
Old versions can be found here.
Examples:
| program | graphviz input | graphviz output PS | output small JPEG | ouput huge JPEG |
|---|---|---|---|---|

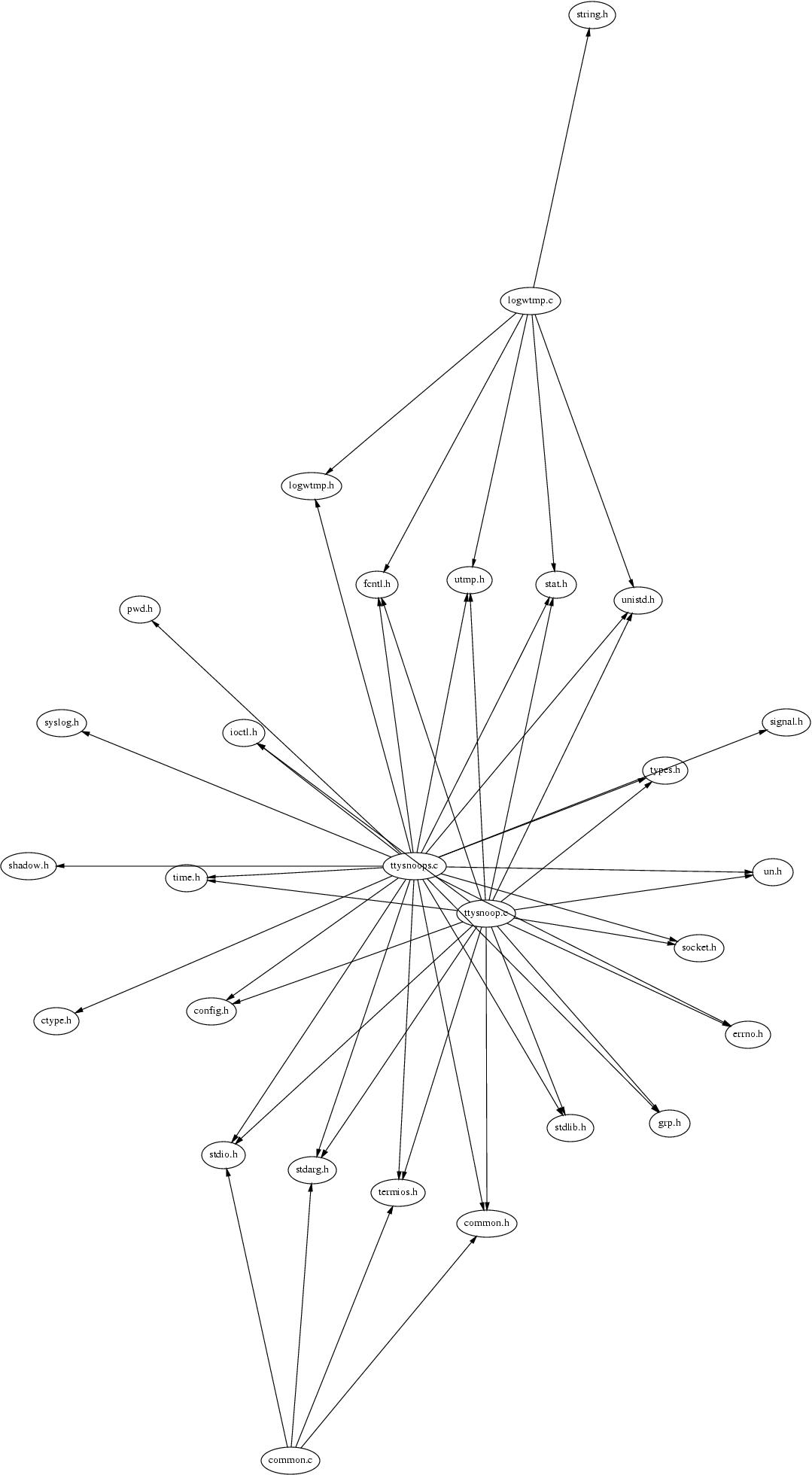

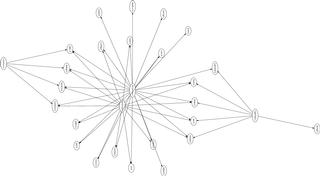

| ttysnoop-0.12c | ttysnoop-0.12c.dot | ttysnoop-0.12c.ps | ttysnoop-0.12c.1024.jpg (25k, 422x768) | ttysnoop-0.12c.jpg (109k, 1079x1960) |

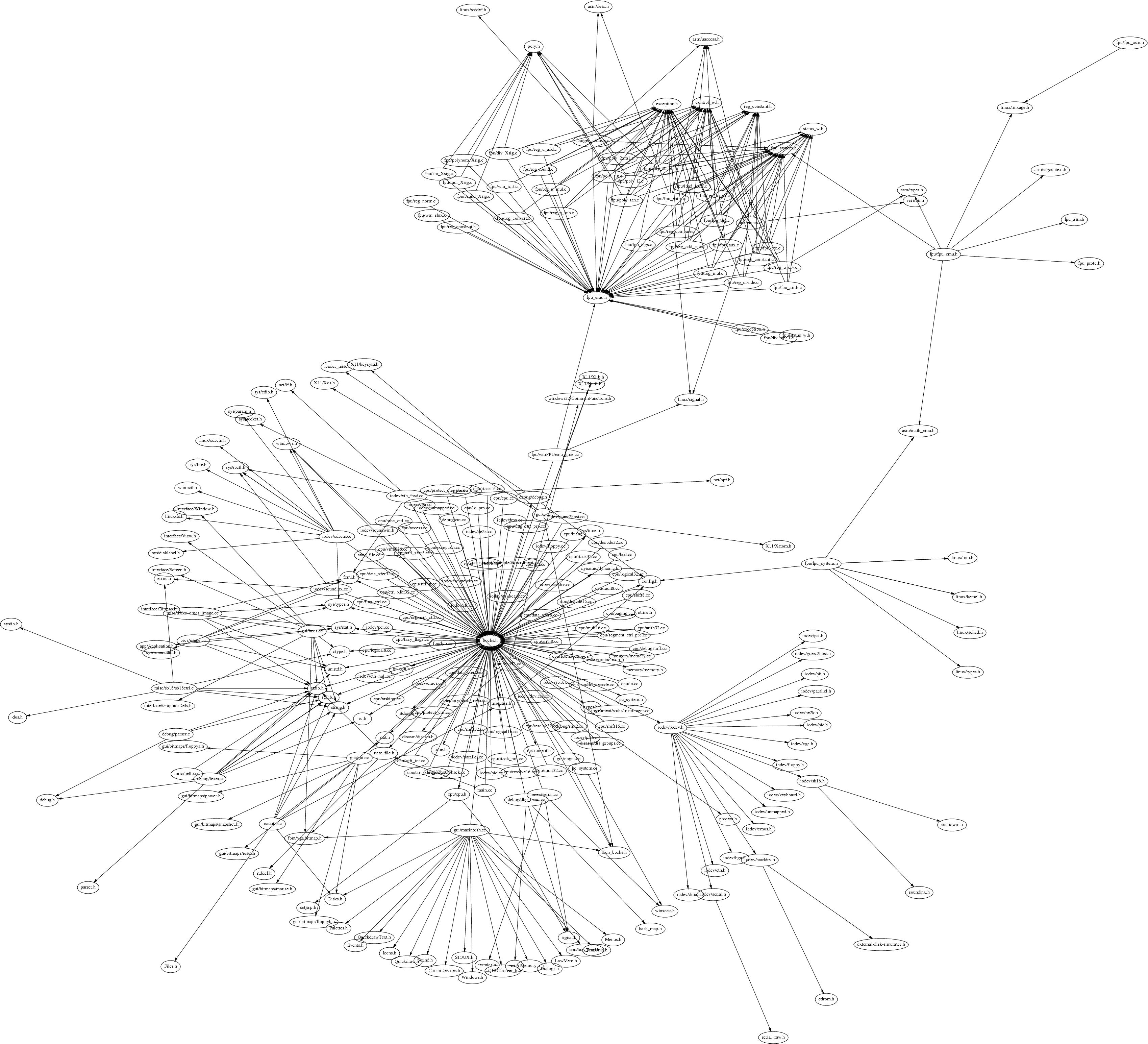

| bochs-2000_0325a | bochs-2000_0325a.dot | bochs-2000_0325a.ps | bochs-2000_0325a.1024.jpg (73k, 844x768) | bochs-2000_0325a.jpg (887k, 3398x3089) |

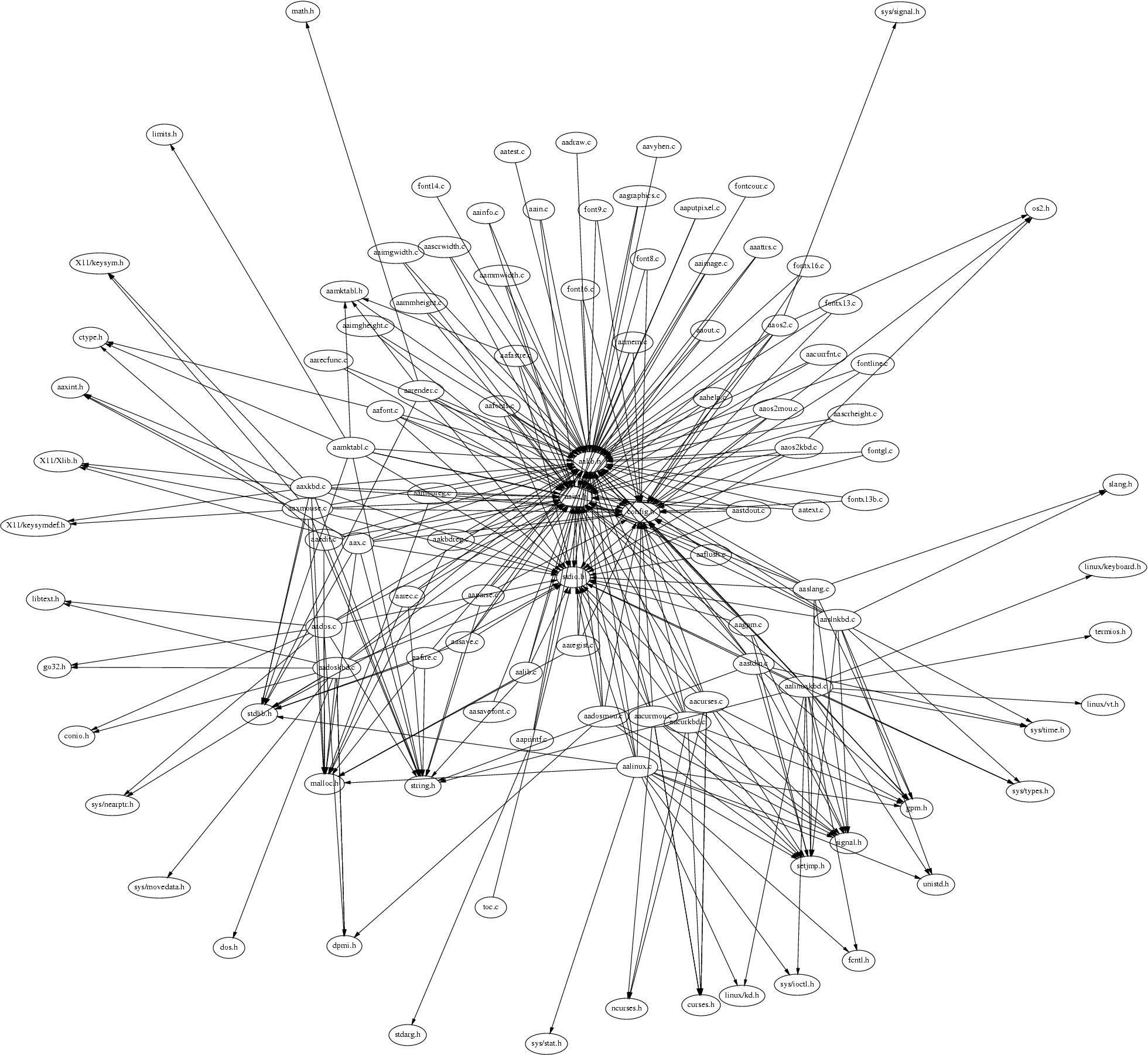

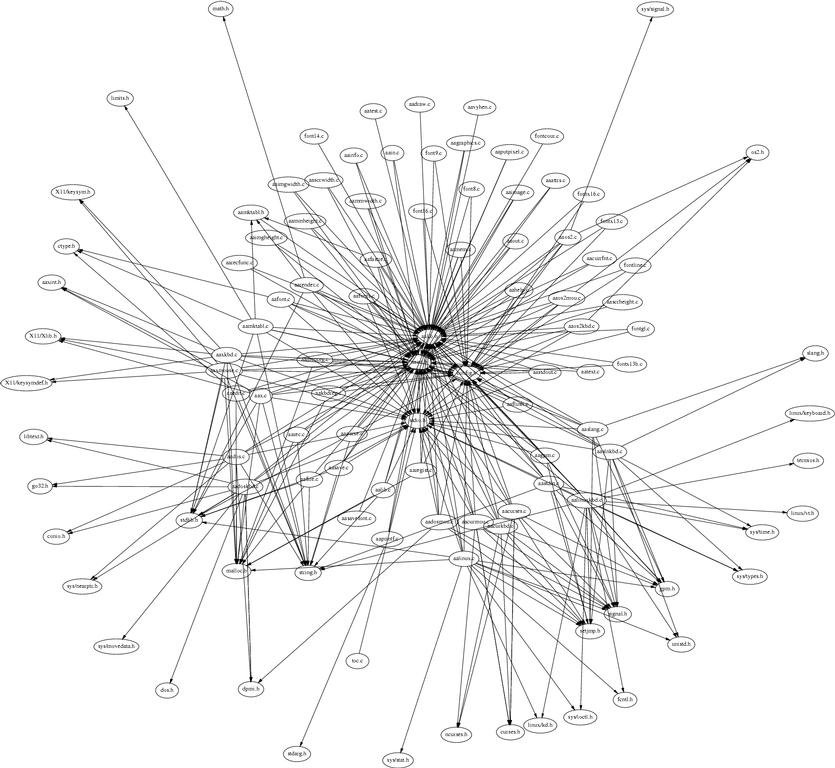

| aalib-1.3 | aalib-1.3.dot | aalib-1.3.ps | aalib-1.3.1024.jpg (98k, 835x768) | aalib-1.3.jpg (435k, 1960x1802) |
| graphviz-1.6 | graphviz-1.6.dot | graphviz-1.6.ps | ||

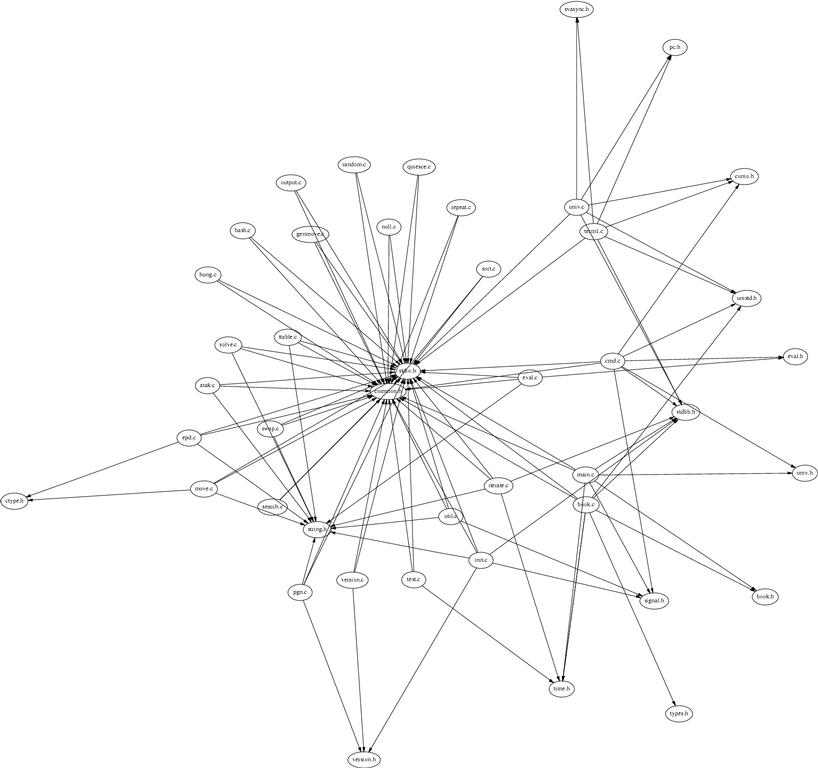

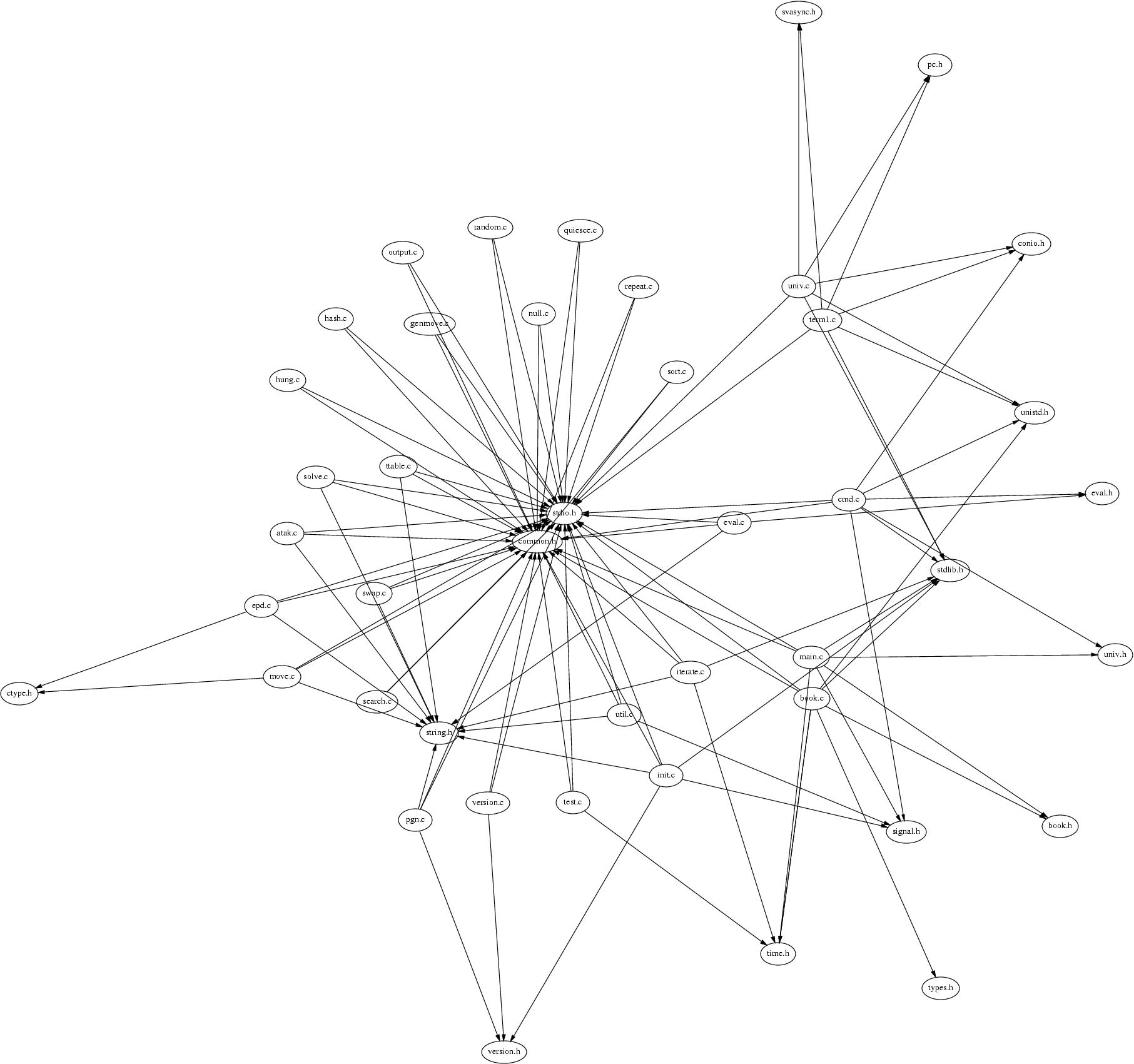

| chess-5.00 | chess-5.00.dot | chess-5.00.ps | chess-5.00.1024.jpg (53k, 818x768) | chess-5.00.jpg (192k, 1813x1701) |

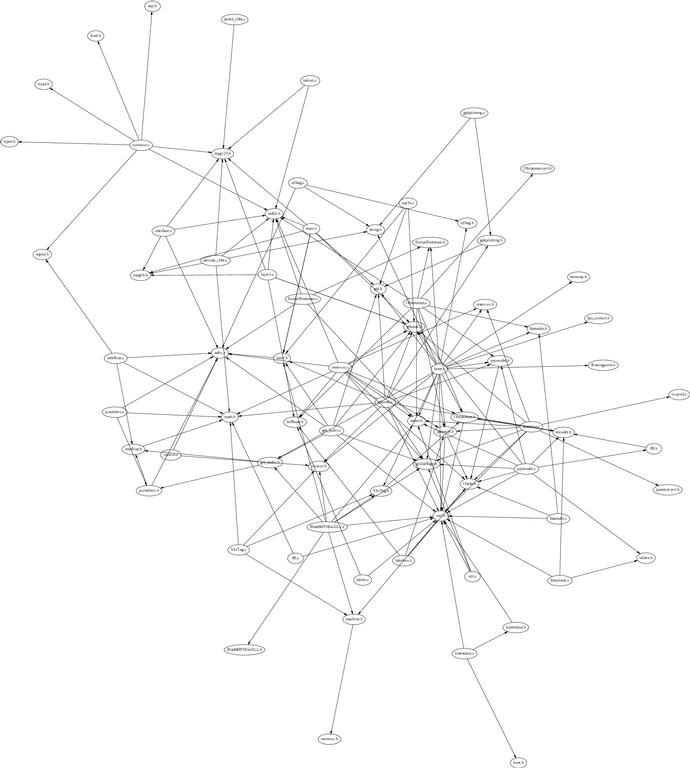

| lame3.51 | lame3.51.dot | lame3.51.ps | lame3.51.1024.jpg (47k, 690x768) | lame3.51.jpg (352k, 2355x2621) |

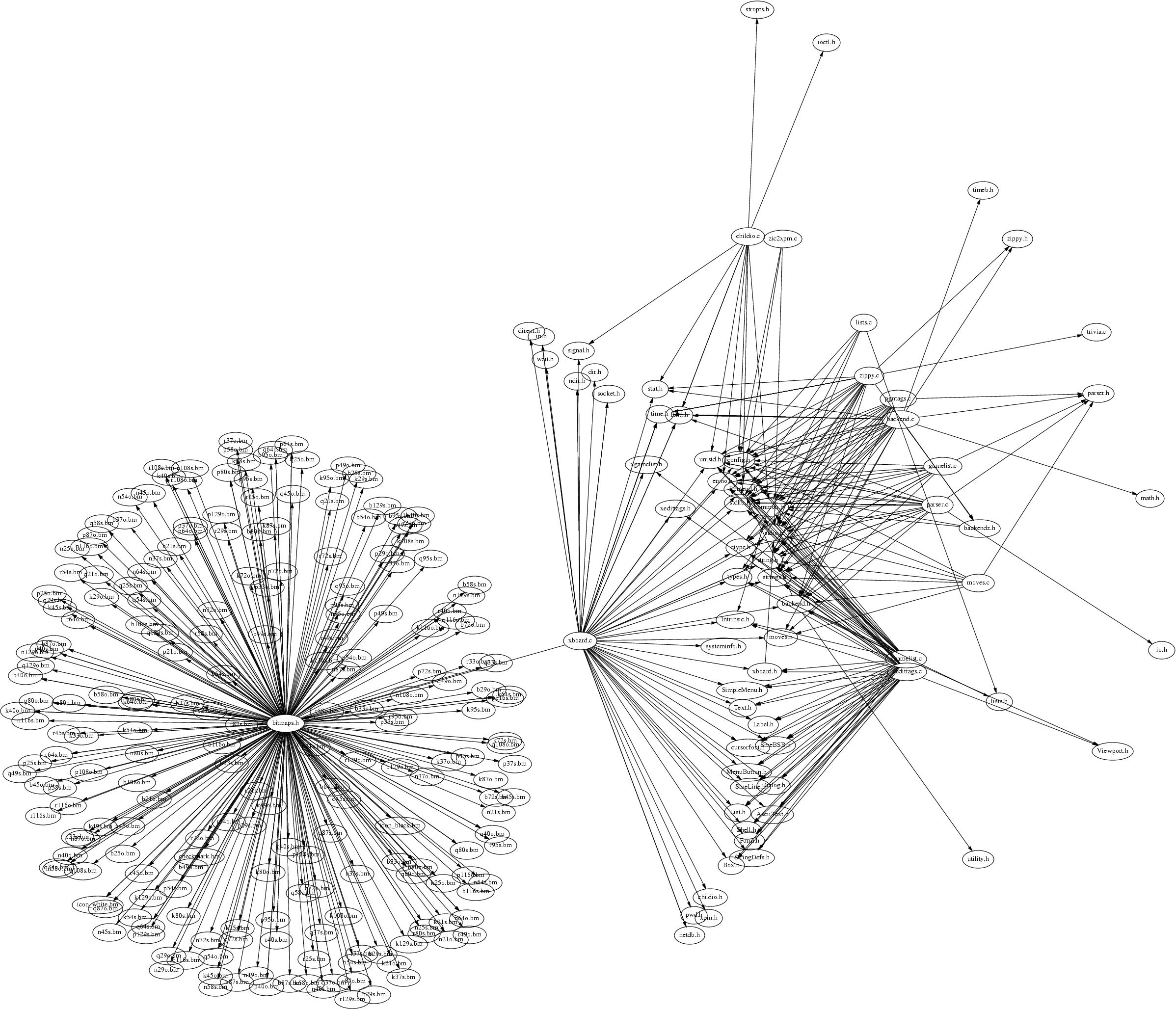

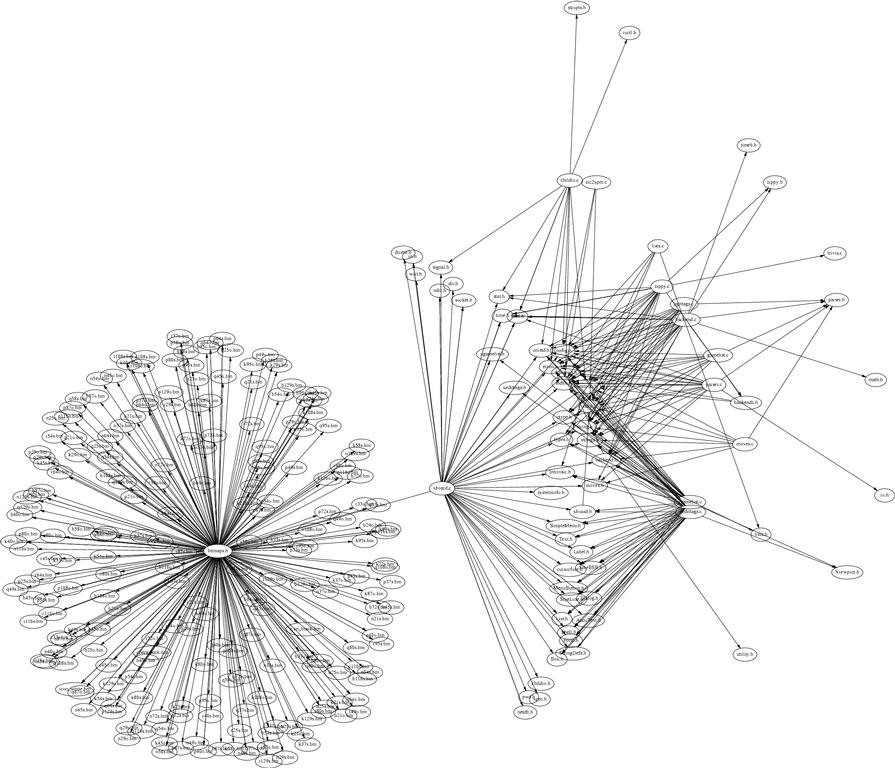

| xboard-4.0.7 | xboard-4.0.7.dot | xboard-4.0.7.ps | xboard-4.0.7.1024.jpg (102k, 895x768) | xboard-4.0.7.jpg (627k, 2396x2056) |

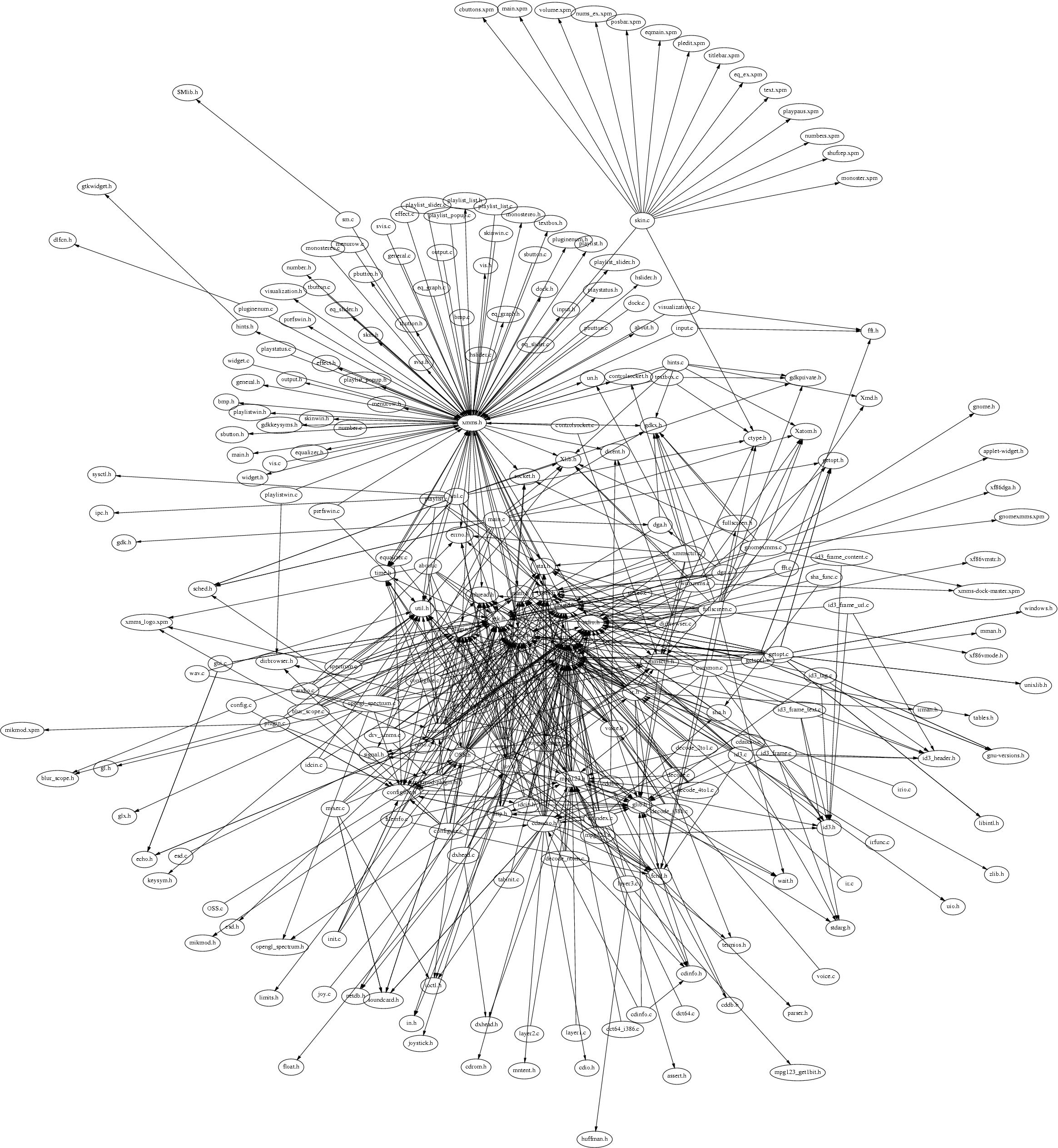

| xmms-1.0.1 | xmms-1.0.1.dot | xmms-1.0.1.ps | xmms-1.0.1.1024.jpg (93k, 707x768) | xmms-1.0.1.jpg (792k, 2329x2527) |
If you would like to send me output to add to this table, please include the program name, version number, a url, and at least the PostScript output.
PostScript output was generated like so:
$ cd ~/program/src
$ ./cinclude2dot.pl > source.dot
$ neato -Tps source.dot > source.ps
$ gv source.ps
JPEGs were created with ImageMagick like this:
$ convert bochs-2000_0325a.ps bochs-2000_0325a.jpg
$ convert -geometry 1024x768 bochs-2000_0325a.ps bochs-2000_0325a.1024.jpg
Other Graph Generators
| apache2dot | Graph links as they are followed within your website. |
| sig2dot | Graph signature relationships in a gpg keyring. |
If you have suggestions for other data that might be graphed this way, please email me.
